BluePrint Engines Chevy LS 376 C.I.D. 520 HP Long Block Crate Engines PSLS3760CT
$4,549.00
Crate Engine, Long Block, GM LS Series 376 C.I.D., 520 HP, Internal Balance, Aluminum Cylinder Heads, Chevy, 6.2L LS, Each
Description
Overview
Brand: BluePrint Engines
Manufacturer’s Part Number: PSLS3760CT
Part Type: Crate Engines
Product Line: BluePrint Engines Chevy LS 376 C.I.D. 520 HP Long Block Crate Engines
Summit Racing Part Number: MLL-PSLS3760CT
UPC: 00887753744678
Crate Engine Family: Chevy LS
Actual Engine Displacement: 6.2L/376
Crate Engine Cylinder Head Material: Aluminum
Engine Block Material: Cast iron
Advertised Compression Ratio: 10.7:1
Assembled: Yes
Engine Balance: Internal
Cam Style: Hydraulic roller, OE roller
Rear Main Seal Style: 1-piece
Intake Manifold Included: Yes
Intake Manifold Style: Carbureted
Cylinder Heads Included: Yes
Carburetor Included: No
Throttle Body Included: No
Distributor Included: No
Oil Pan Included: Yes
Valve Covers Included: Yes
Timing Cover Included: Yes
Water Pump Included: Yes
Harmonic Balancer Included: Yes
Flexplate Included: No
Flywheel Included: No
Air Cleaner Included: No
Spark Plugs Included: Yes
Spark Plug Wires Included: Yes
Computer Included: No
Wiring Harness Included: No
Supercharger Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Coil packs are included. The MSD-6014 ignition box is recommended. Engine uses a Corvette style balancer.

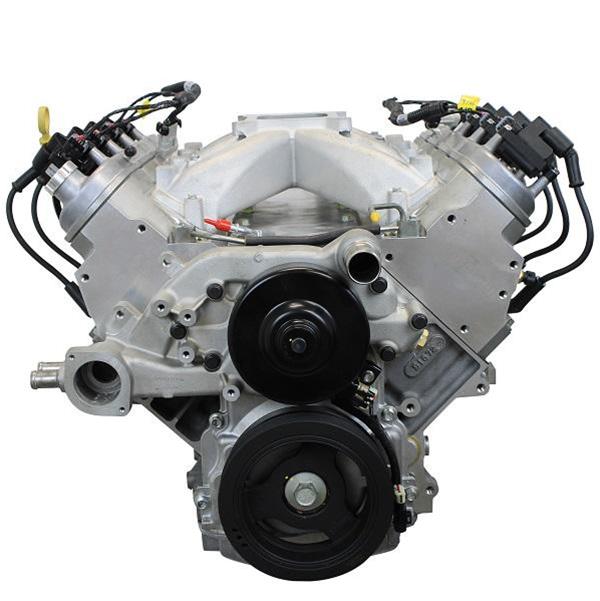

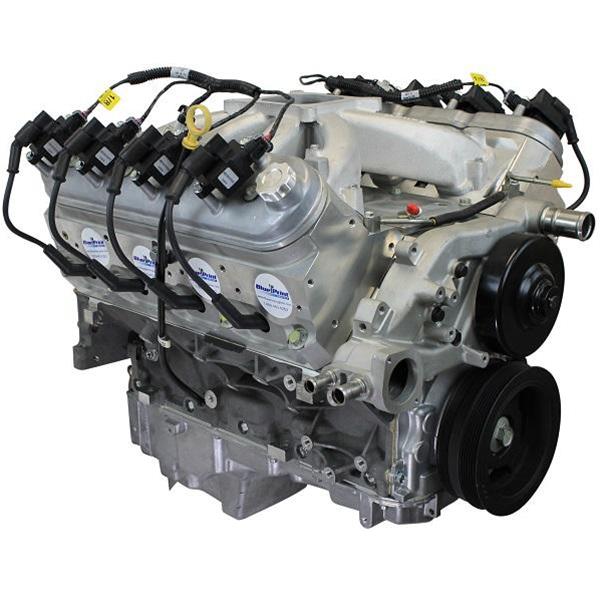

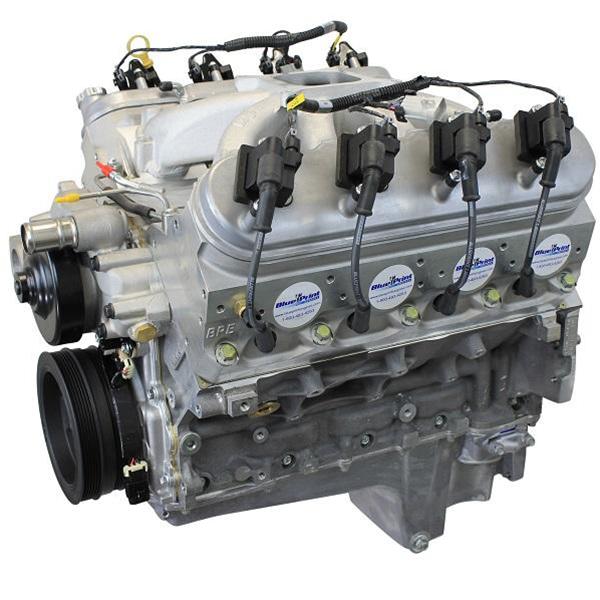

BluePrint Engines Chevy LS 376 C.I.D. 520 HP Long Block Crate Engines
BluePrint’s Chevy LS 376 c.i.d. 520 hp long block crate engine is an LS retrofit engine with carbureted intake, designed for customers looking to finish off an LS with their own induction or dress-up equipment.
Details and specs:
* 520 hp / 470 lbs.-ft. torque
* Compression ratio: 10.7:1
* Aluminum heads
* Hydraulic roller cam
BLOCK:
* New 6.2L block
* OEM block machined in the USA
* 6-bolt main
* One-piece rear main seal
ROTATING ASSEMBLY:
* Nodular iron crankshaft
* 3.622 in. stroke
* 6.098 in. connecting rods with 150,000 psi bolts
* Hypereutectic pistons
* Internally balanced
CYLINDER HEADS:
* BluePrint aluminum cylinder heads (PS8015)
* 72cc chamber
* 2.165 in. intake / 1.600 in. exhaust valves
* 259cc intake / 102cc exhaust runners
CAM SPECS:
* Cam type: Roller cam
* .612 intake, .585 exhaust
* 225 intake / 238 exhaust duration @ .050 – 113 degree lobe separation, 110 ICL
IGNITION TIMING:
* Ignition box required; BluePrint Engines recommends MSD 6014 ignition system
ALSO INCLUDES:
* GM musclecar swap oil pan
* Carbureted intake manifold
* Coil packs
* Spark plugs and wires
* Water pump
* Harmonic balancer
